Type: Basin Faucets Place of Origin: Zhejiang China (Mainland) Faucet Mount: Single Hole Valve Core Material: Brass Surface Finishing: Chrome Style: Classic Feature: Sense Faucets,Thermostatic... Number of Handles: Single Handle Installation Type: Deck Mounted Surface Treatment: Polished Model Number: JSD8902 color: chrome finishing Material: Brass Function: Induction Installing Mode: JSD8902 Usage: Wash basin double water: cold and hot mixing market: European market
Unit Type: piece Package Weight: 1.87kg Package Size: 28cm x 19cm x 12cm

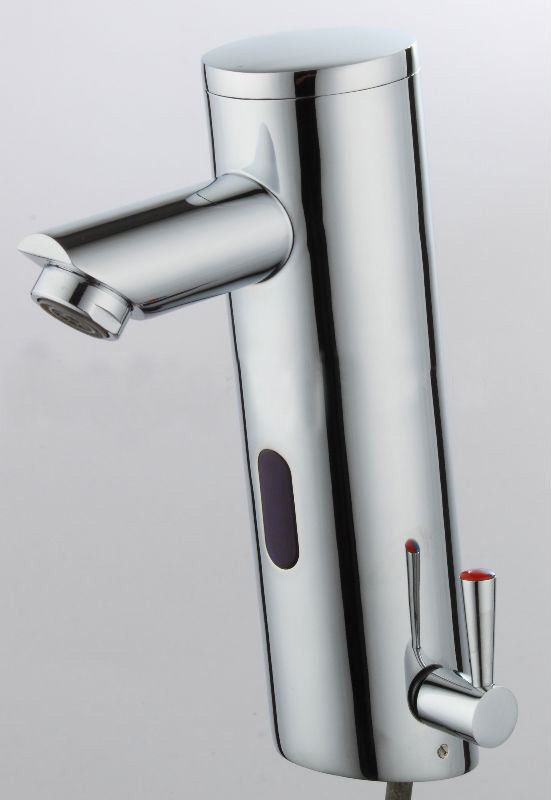

Automatic faucet

1.features:

*cold and hot integration.it is a mixer with the cold water in the left turning and hot water in the right turning.

*water saving: water flow out when your hands approach the induction zone,and stop immediatelly once you draw back your hands.

*low power ,electricity saving:For DC type, 4pcs AA batteries can be used for about 2 years, if the faucet working 200 times a day





2.specification:

 Electric Power: DC Dry Battery ,also  can do AC power as per customer demand

 Specifications:

Dia of inlet pipe: G1/2"

Dia of outlet pipe: G1/2"

Water pressure: 0.1-0.6MPa

Power: DC6V(4AA Alkaline batteries)

Power consumption in static: ≤0.5mW

Detection Zone: Factory set 30cm (The data base on 30cmX30cm stardard white board the indication distance willbe adjusted by itselff according to its environment)

Protection degree: IP56

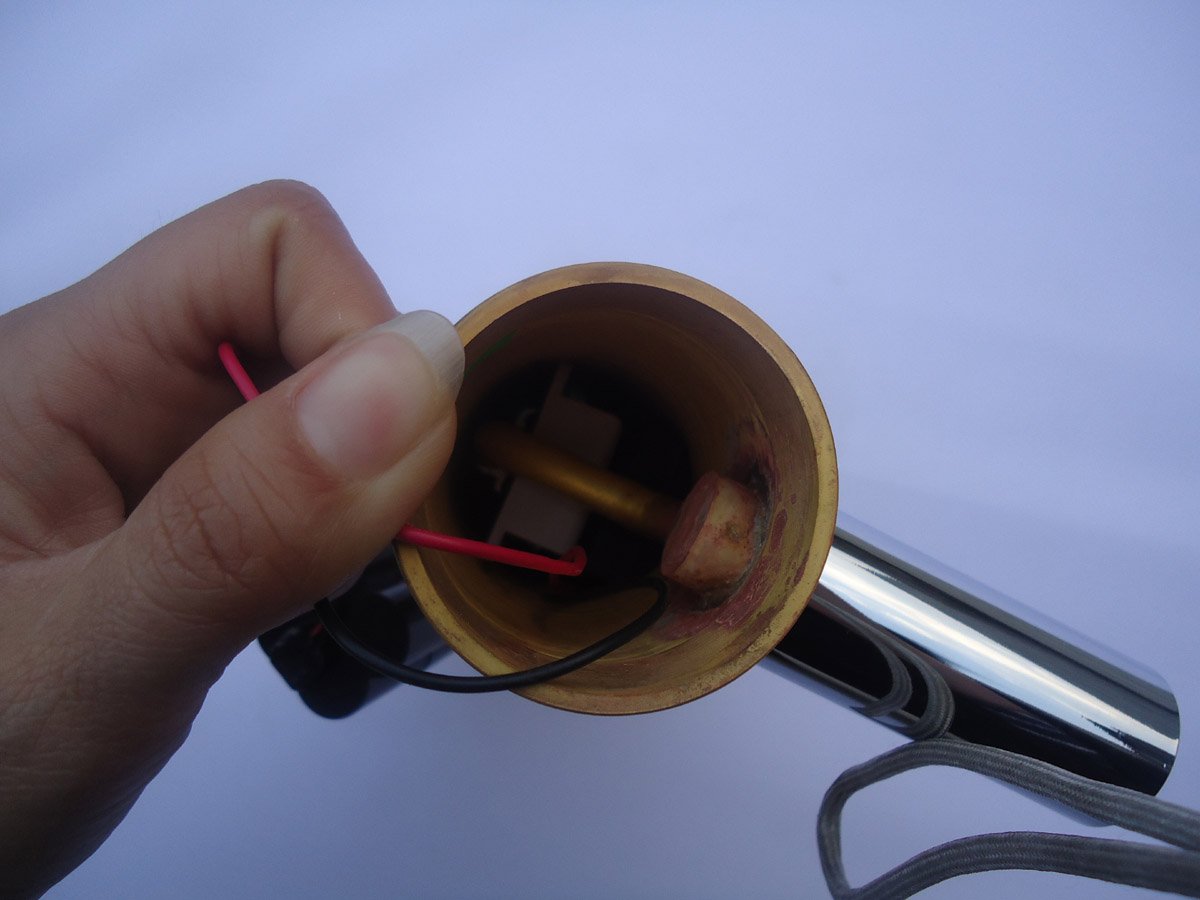

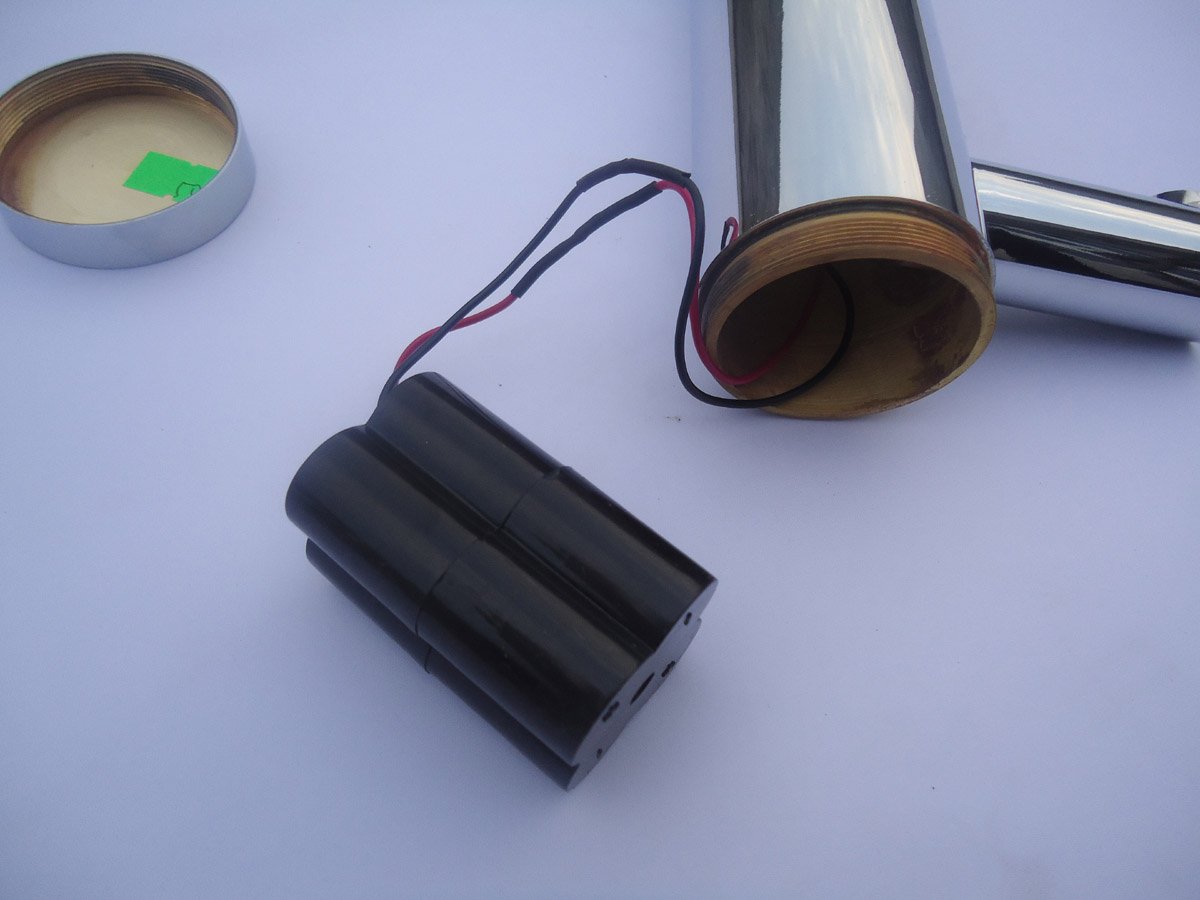

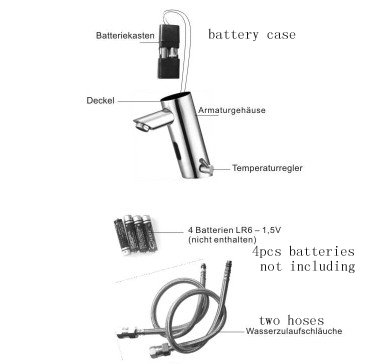

Each parts for this modle:

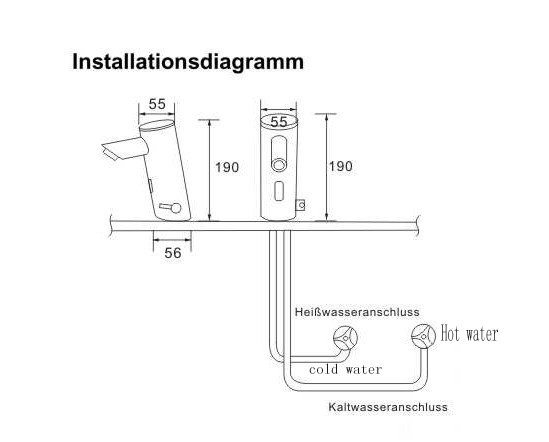

It is easy to install ,just same as normal faucet.













All-in-one automatic sensor faucet, it means that all components including PCB + sensor, solenoid valve, battery holder are inside the faucet body, there's only two hoses connected with the water pipe, so it is very convenient for installing and maintenanced.

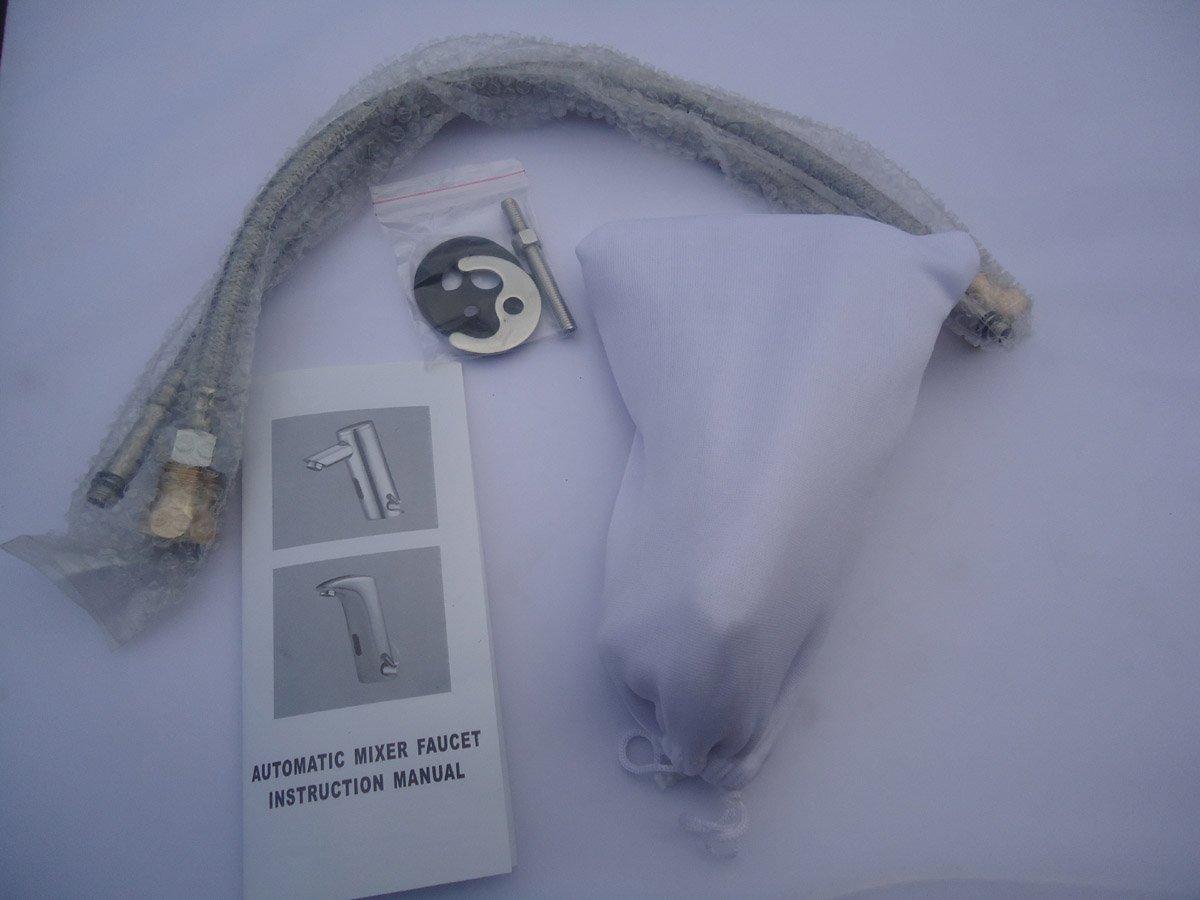

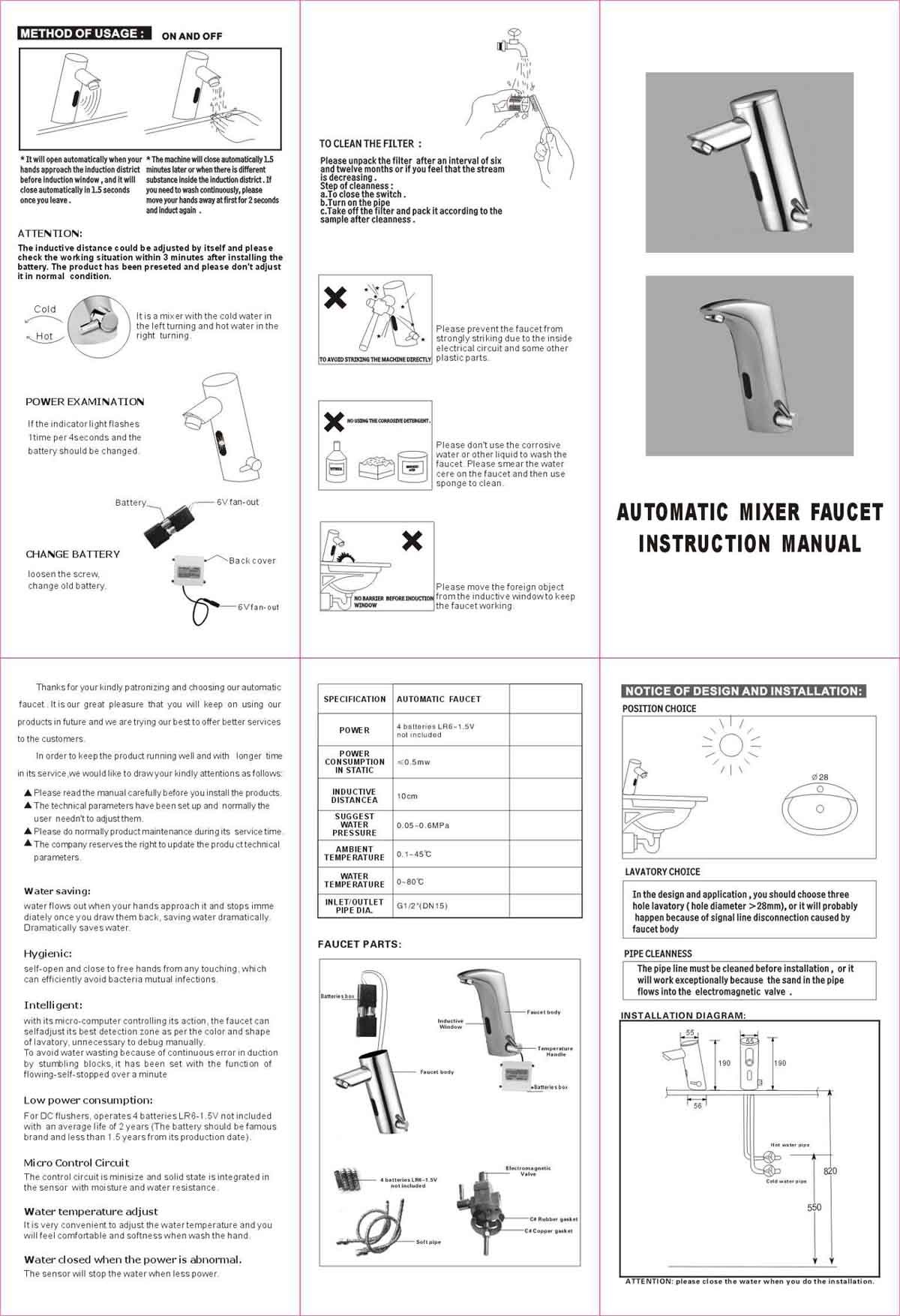

Instruction manual

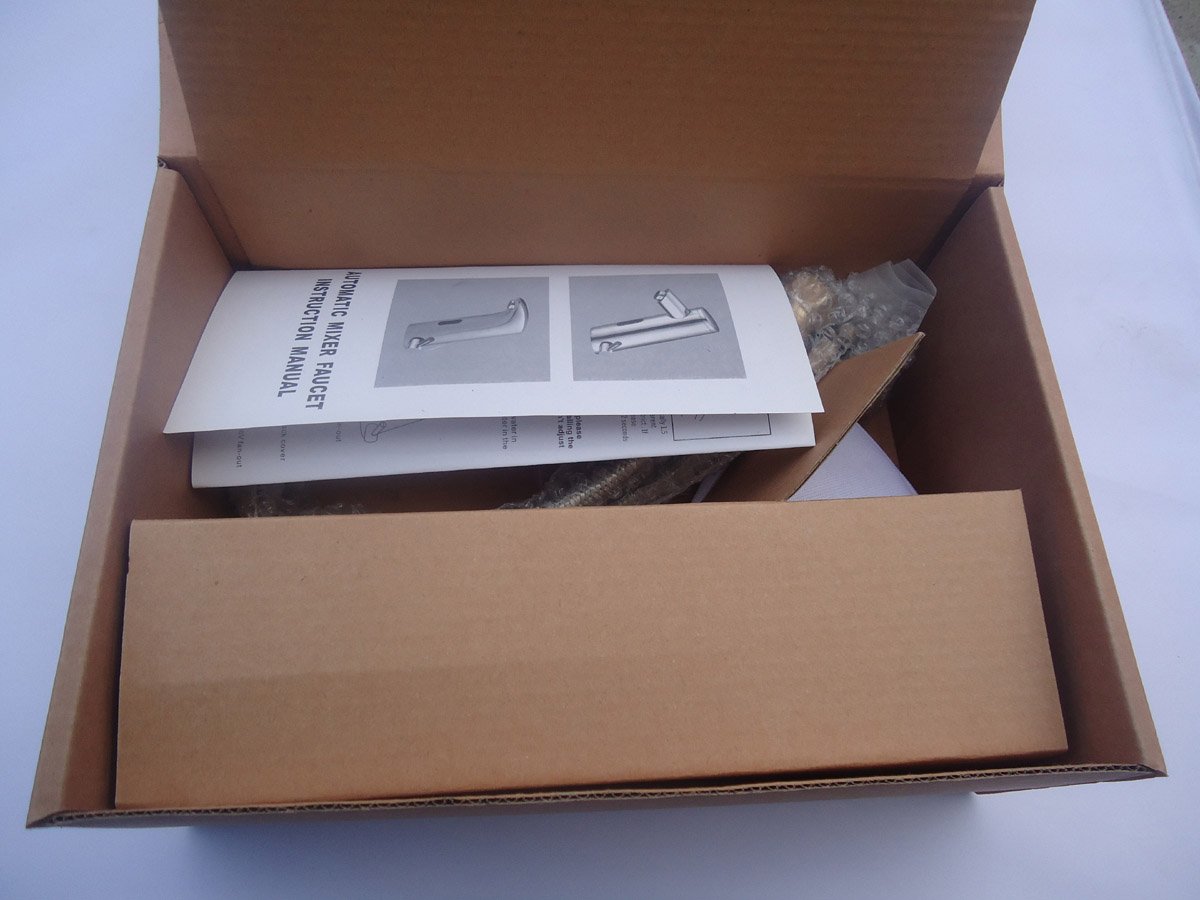

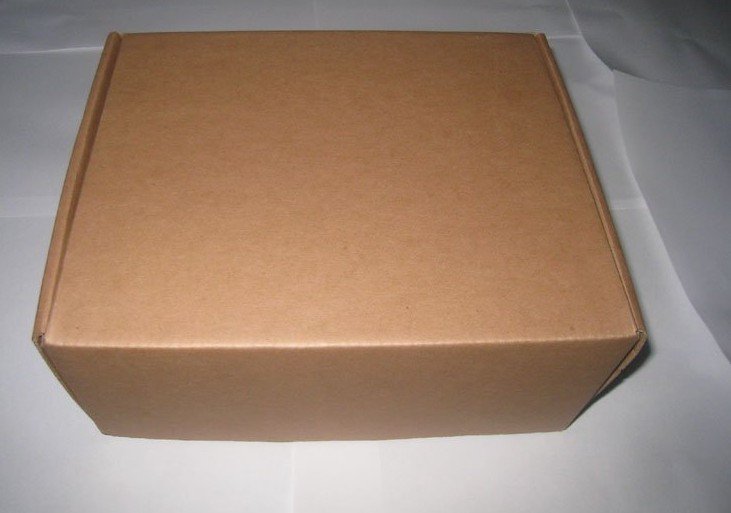

Packing: brown box packing, same as export standard:

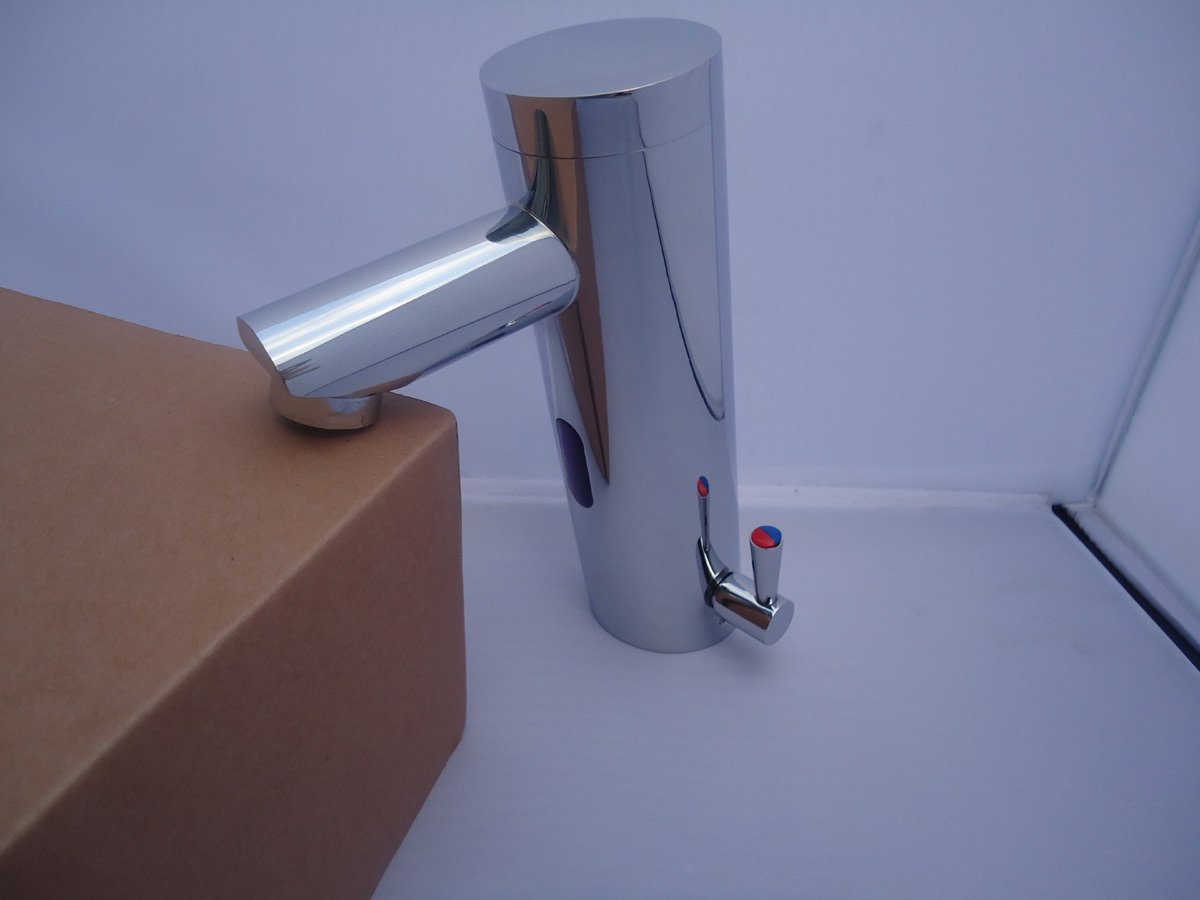

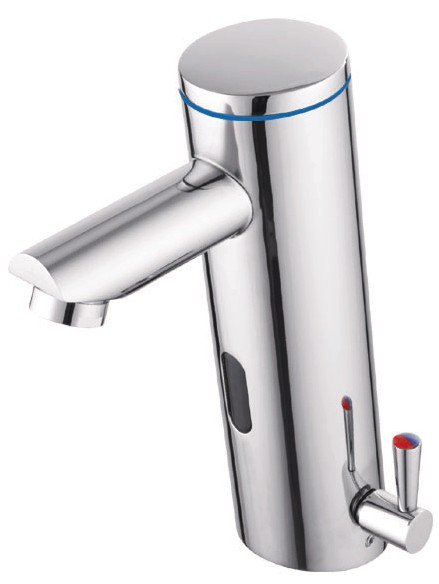

Unit picture:









name:automatic sensor faucet, induction faucet, inductive facuet, infared facuet,sensor faucet, basin faucet, facuet, taps ,facuet mixer, sensor taps, inductive taps, infared inductive taps.
