Place of Origin: Taiwan Brand Name: FUTABA Use: Vehicles & Remote Control ... Model Number: GY401 Use: Electrical Toys Digital Gyro: A.V.C.S. 450 Class: 500 Class Align: E-Flite quality: 100% brand new GOOD FUTABA: GY401
Unit Type: piece Package Weight: 0.05kg Package Size: 20cm x 15cm x 10cm



Specification:

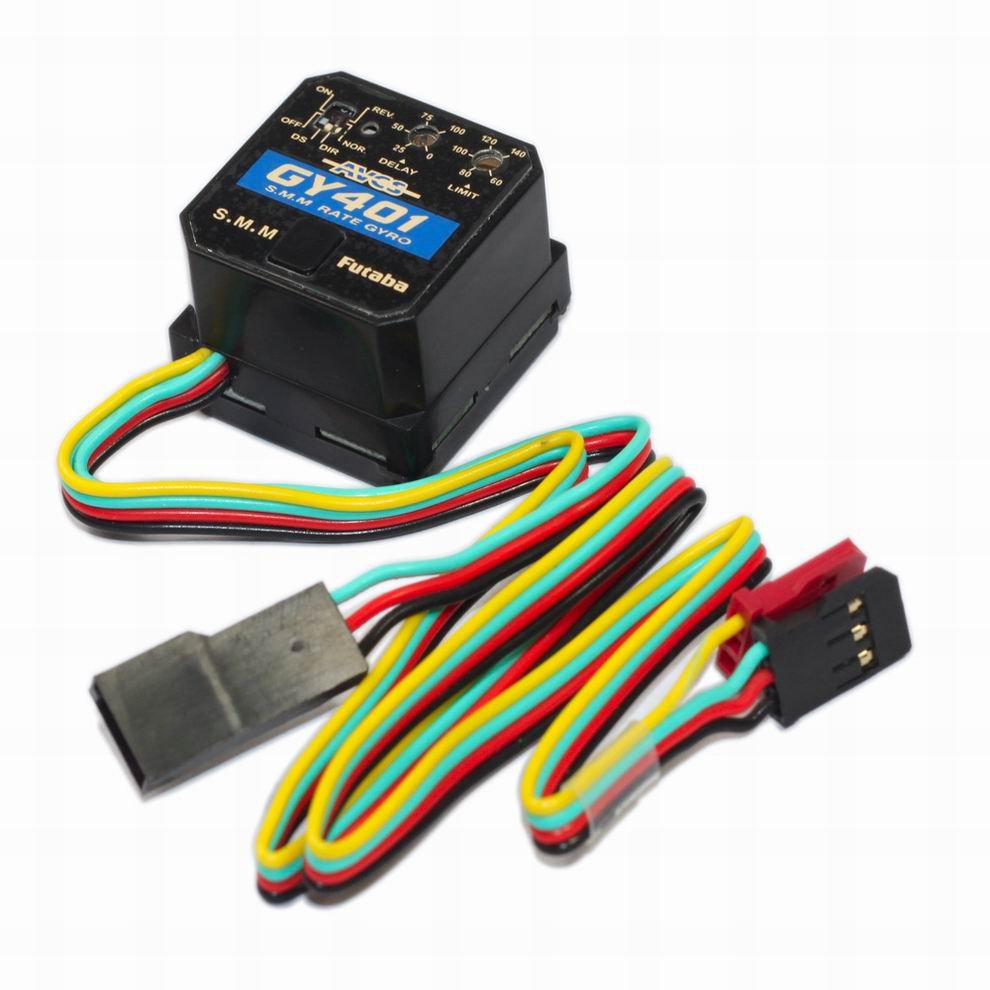

This is the GY401 Gyro with SMM Technology from Futaba. This is a High Performance, Compact and Lightweight (AVCS) Angular Vector Control System gyro developed for model helicopters. Because the sensor and control circuit are integrated, it is simple to install.



FEATURES: AVCS System: Since the rudder trim changes (caused by wind and other meteorological changes); the front, rear, and other heli attitudes change and are automatically cancelled; tail (rudder) operation is easy, making it perfect for 3D flight. (also known as Heading Hold Gyro) SMM Gyro Sensor: Use of this newly developed technology virtually eliminates rudder trim changes during flight (see COMMENTS). Digital Servo Compatible (DS Mode): DS mode makes it compatible with Futaba digital servos. This maximizes the high-speed response performance of the Digital Servo. Remote Gain Function and Mode Switching Function Remote: Gain function allows sensitivity switching from the transmitter and mode switching function allows AVCS/normal gyro mode switching. Integrated, compact and lightweight design made possible by high density mounting technology. Conductive Resin Case: This case improves EMC (Electrostatic and electromagnetic interference) resistance.

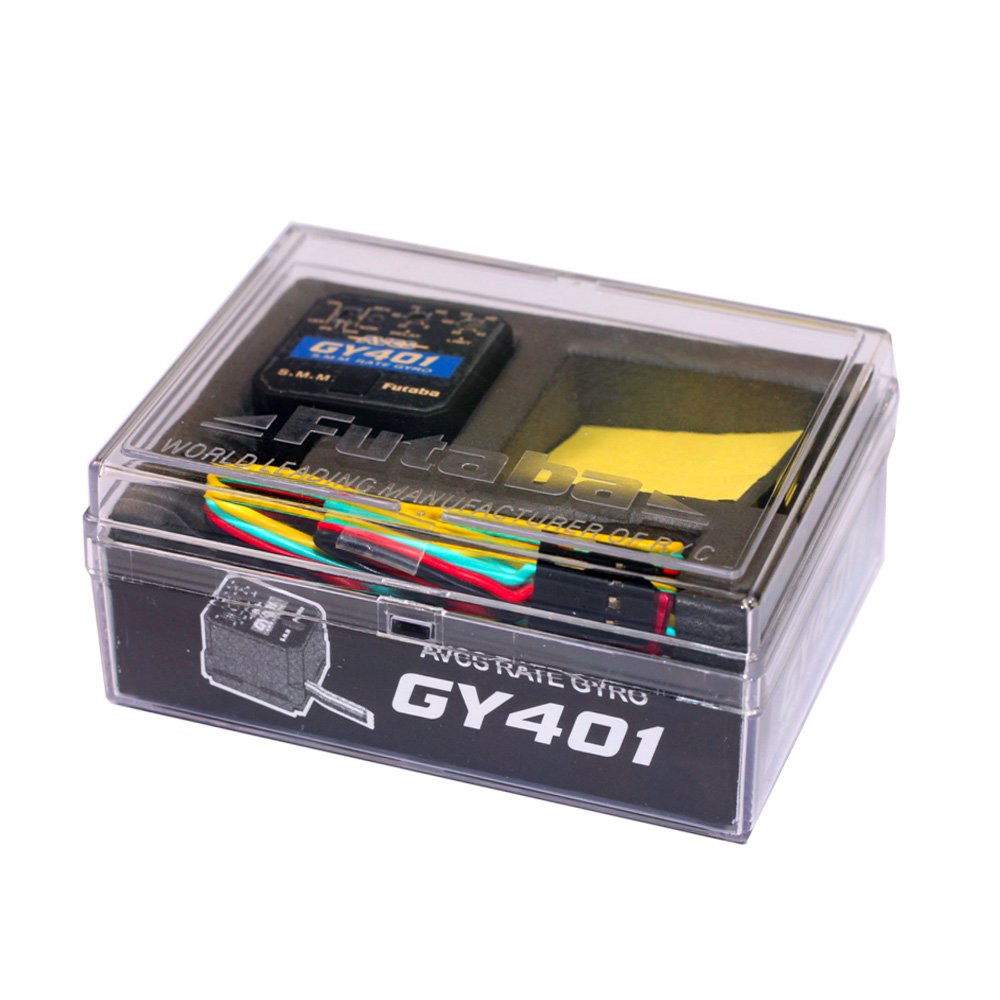

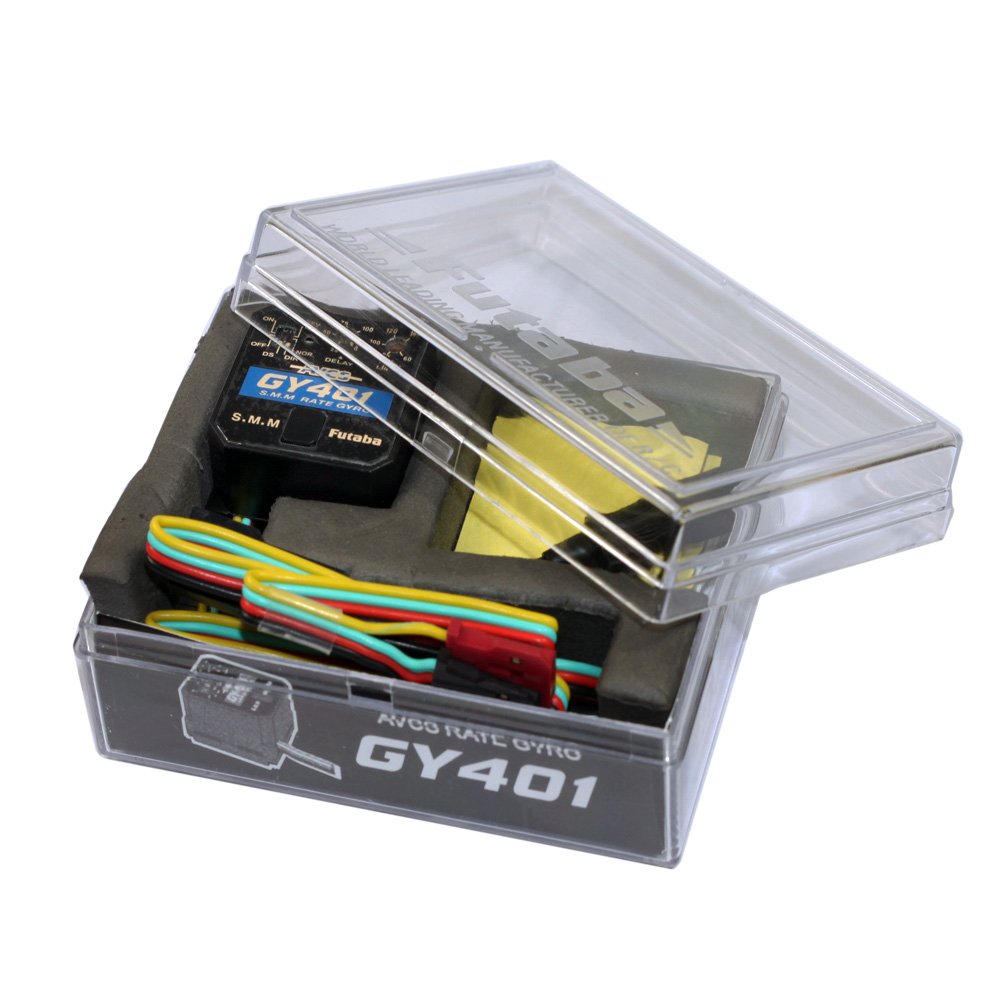

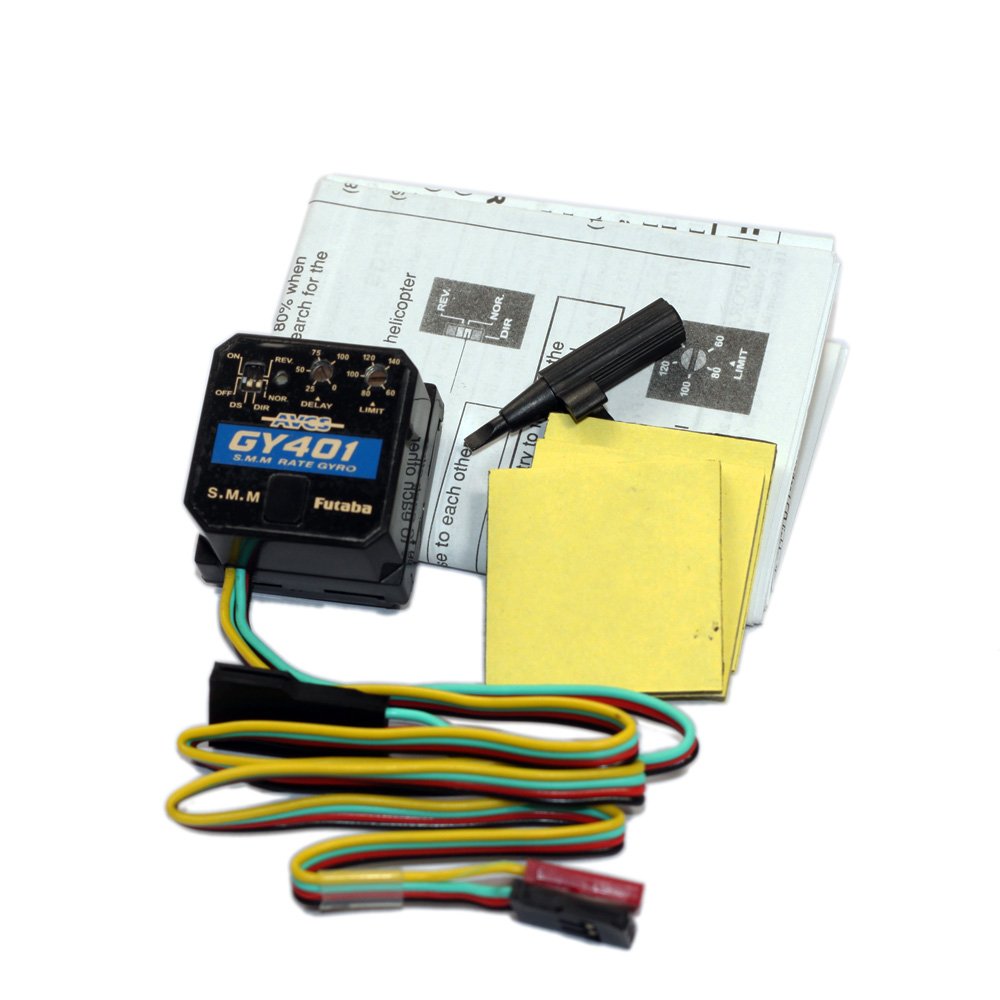

INCLUDES: One GY401 gyro One mini plastic adjustment screwdriver Three mounting pads One instruction sheet



SPECIFICATIONS: GY401 Gyro Length: 27mm Width: 27mm Height: 20mm Weight: 27g Voltage- use only with a 4.8V battery. (if you use it with a higher voltage battery it needs to be regulated to 6V)



COMMENTS: Can be used in helicopters and airplanes (Due to 0-100% Gain Adjust). The new SMM (Silicone Micro Machine) technology is the integration of mechanical elements, sensors, actuators and electronics all brought together on a common substrate chip. This hobby industry first, results in a gyro sensor with an unprecedented level of functionality, reliability, and sophistication. This will not work with the JR digital servos. These have a different pulse.



Package:quantity: 1pcs 100% Brand New!
