Place of Origin: Guangdong China (Mainland) Brand Name: KDS Use: Vehicles & Remote Control ... Model Number: Flymentor Condition: New in Box Quality: High
Unit Type: piece Package Weight: 0.3kg Package Size: 35cm x 21cm x 12cm

Automatically Hovering in a Fixed Position - KDS Flymentor 3D Stabilizing System
The KDS Flymentor 3D contain 3 components, the Flymentor Mixer, a CCD Camera and a 3-Axis Gyro. The system act as a Auto Pilot, it will only steps in when you don't give any input, but once you move your hands on the control sticks again, the system will de-activate and let you take charge again, pretty amazing, isn't it? Just like a real Auto Pilot when you need a break. The system provides 2 main features, Stabilizing Mode and Positioning Mode.



What is Stabilizing Mode?
Under this mode, there will be solid red and green light on the Flymentor Mixer, the CCD will not be working, only the 3-Axis Gyro is working. When you play the helicopter outdoor, there is wind, right? When wind pass thru the helicopter, it will push the helicopter and making it up side down, you will need to adjust the control sticks constantly to prevent this from happening. By using the Flymentor, it will automatically correct the cyclic servos and keeps the helicopter always in horizontal mode. Thanks to the 3-Axis gyro, it can work all around 360 degree correction.



What is Positioning Mode?
In this mode, there will be solid green light on the Flymentor Mixer, the CCD Camera and the 3-Axis Gyro are both working. The CCD Camera will constantly taking pictures of the ground, and compare each frame, to see if the helicopter is drifting, then it tells the Flymentor Mixer to give correction to all cyclic servos. Resulting the helicopter will stay in a Fixed position. The concept is basically an Eye watching the ground and make adjustment, kinda like a real human. But note that the system is not hooked up with the throttle, the attitude of the helicopter is still in your control.



Specifications :
- Voltage: 4.8V - 6.0V
- Current: 55mA (under 5V)
- Temperature Range: 0°C - 40°C
- Weight: 37g
- Support helicopters with 3S-120^o swashplate, or 3S-140^o swashplate, or 4S-90^o swashplate, or 4S-90^o + 45^o swash plate

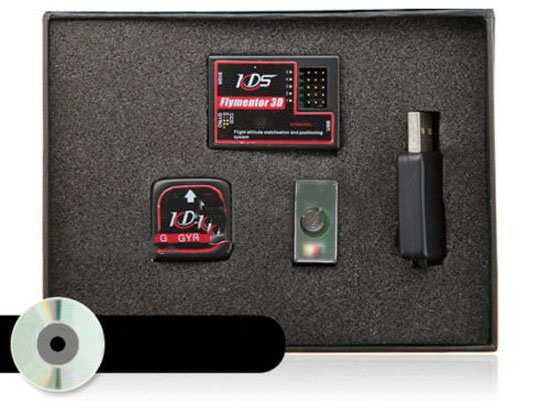

This package includes :
1. KDS Flymentor Mixer
2. KDS Flymentor CCD Camera
3. KDS Flymentor 3-Axis Gyro
4. CD with Installation Guide and Software
