Place of Origin: Guangdong China (Mainland) Model Number: CD-601 color: silver Certification:: CE
Unit Type: set Package Weight: 4.5kg Package Size: 15cm x 25cm x 10cm

 GIFT ===8 PCS

• 100% Brand new in new package
• This is 1/8 HP
• High efficiency.
• Durable aluminum alloy.
• Portable and light weight.
• Low noise and Oil free.
• Working pressure adjustable.
• Can start with pressure, and continuous work.
• Much Safer! Thermally protected!
• It will turn off automatically when the power over heated.

Introduction

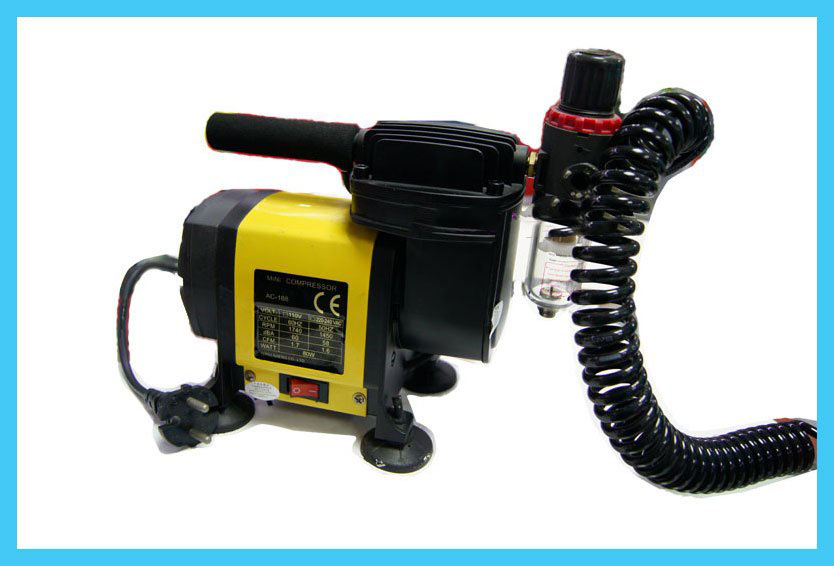

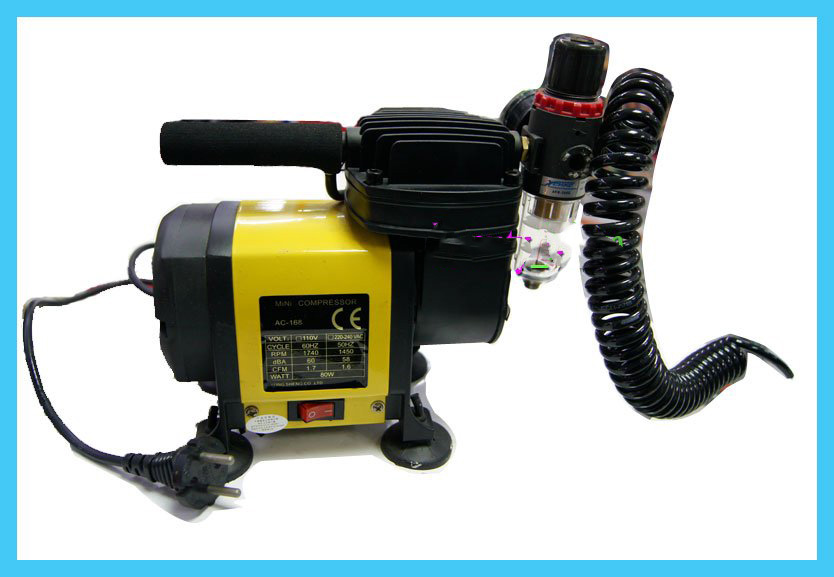

This 1/8 HP oil-less piston Mini Air Compressor is ideal for most airbrush use.

Portable desing features automatic shout off at 68psi, and it will immediately start again at 28psi, include regulator, filter, 6* 4*5m PU hose, and gauge.

Operations

1. Make sure the compressor is disconnected from the power source.
2. Connect air hose to the 1/8” connector on the air filter.
3. Connect the airbrush or other air tools to another side of the air hose.
4. Plug the compressor in and press the switch to start it.
5. Pull up the regulator and turn clockwise to increase air flow. To decrease airflow.

Turn counter-clockwise.

Safety

1. Place the compressor on a flat surface in a well Ventilated, dry area.
2. Do not use the compressor for filling breathing or diving apparatus.
3. Disconnect the air tool and unplug the compressor when not in use.

Maintenaace

1. Clean off the cylinder head.
2. Check for worn or damaged cords and plugs.
3. Check for any other condition that could hamper the safe operation of this machine.
4. Check for loose bolts or fittings.
5. Check air lines and connectors to make sure they are in good condition.
6. Drain the moisture trap periodically.

Trouble shooting

If while spraying, the compressor starts and stops during a continuous spraying stroke it is necessary to regulate the pressure switch adjusting knob.

Specification:
