Place of Origin: China (Mainland) Model Number: 15cc Brand Name: RCGF Use: Vehicles & Remote Control ... Displacement: 15cc Ignition: DC-CDI Power supply: 4.8-6V Maximum Output: 2.1 hp/1.54KW speed rang: 1500-15000rpm
Unit Type: piece Package Weight: 2.1kg Package Size: 20cm x 20cm x 21cm

Free Shipping RCGF 15cc Airplane Engine









Parameter:

Type : 2 cycle piston valve type gasoline  engine for airplane
Displacement (cc) : 15cc
Bore x Stroke (mm): 29mm*26mm
Carburetor : Walbro Pump(made in Japan) & Made in China (Diaphragm butterfly valve type)
Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)

Power supply: 4.8-6V

Maximum Output : 2.1 hp/1.54KW
speed rang : 1500-15000rpm
Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1  (recommended : 30:1)

(90% high octane unleaded gasoline, Import gas into carbon fiber installations valves)
Lubrication Oil : 2 cycle engine oil
Propeller : 15*8  8000 rpm; 13*8 10000rpm (Standard Two leafs prop)

recommended props 13 x 6, 14 x6,13X8,15X8,15X6

recommended Airplane: 60 size plane,50 size plane,40 size plane
Cooling System : Air Cooled

N.W. (Including ignition and muffler ):  825g

N.W. (Not including ignition and muffler) : 635g

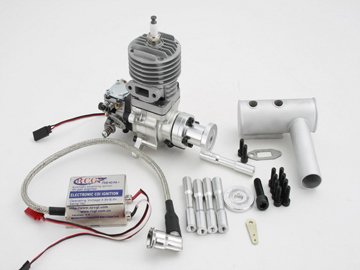

Package included:



RCGF 15cc airplane engine, muffler, CDI ignition

Machined Engine Mounting Standoffs and Bolts

Gasket and Bolts

English user manual
