Type: Basin Faucets Place of Origin: Guatemala Installation Type: Wall Mounted Model Number: L-4013 Brand Name: mu Style: Contemporary Number of Handles: Single Handle Valve Core Material: Ceramic Feature: Thermostatic Faucets Surface Finishing: Nickle Faucet Mount: Single-hole installation Surface Treatment: Chrome LED color: 0 ~ 30 ℃ blue light-emitti...
Unit Type: piece Package Weight: 1.5kg Package Size: 38cm x 18cm x 19cm

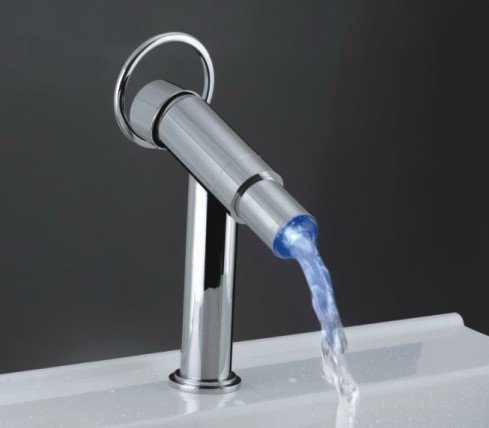

Single Handle Chrome Centerset LED Bathroom Sink Faucet With Hot and Cold Water Switch Function
Suitable Place	Sink
Installation Type	Centerset
Valve Type	Ceramic Valve
Material	Brass
Finish	Chrome
Faucet Total Height	20 cm
Spout Height	9 cm
Spout Length	15 cm
Shipping Weight	1.5 kg
In the box	1 x Faucet; 2 x Hose; 1 x Accessory Set; 1 x Installation Instruction;





• The LED light is powered by water falling,no battery needed.
• The LED color can be changed by the water temperature:











Feature
It is easy to let your faucet is installed correctly installed even if you've never tap
All our taps have been proven to be durable ceramic valve in his lifetime because no leakage
Ceramic valve life can reach more than 600,000 times whick make our long-term use under the tap for 90 degrees
Our taps has been 1.6MPA high pressure test prior to delivery to ensure the absolute quality.
The LED light is powered by the four units of 1.5V AA batteries (not included in the package), and light and can only turn on the tap

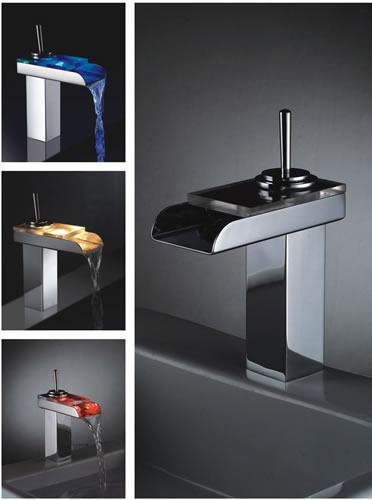

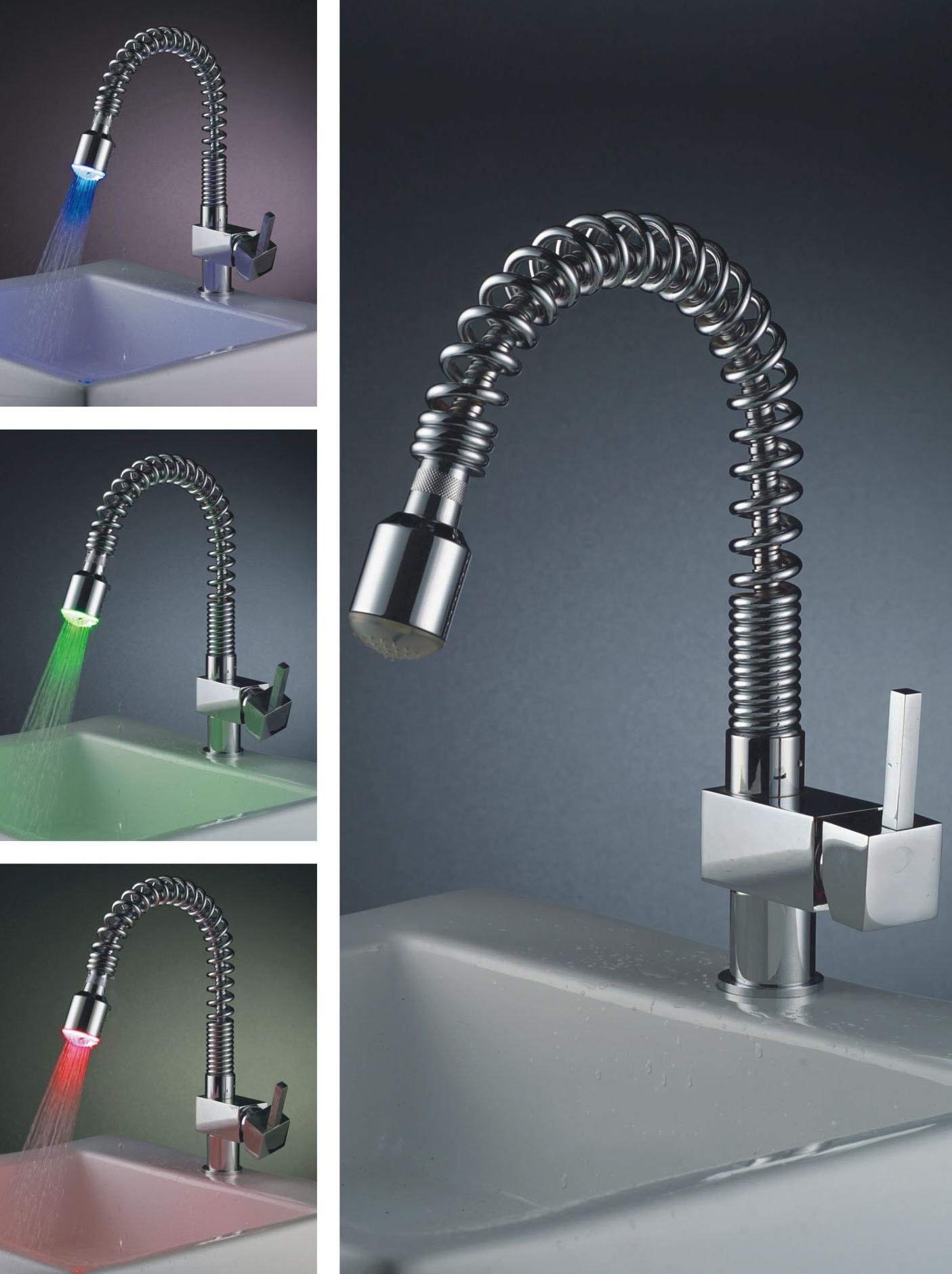

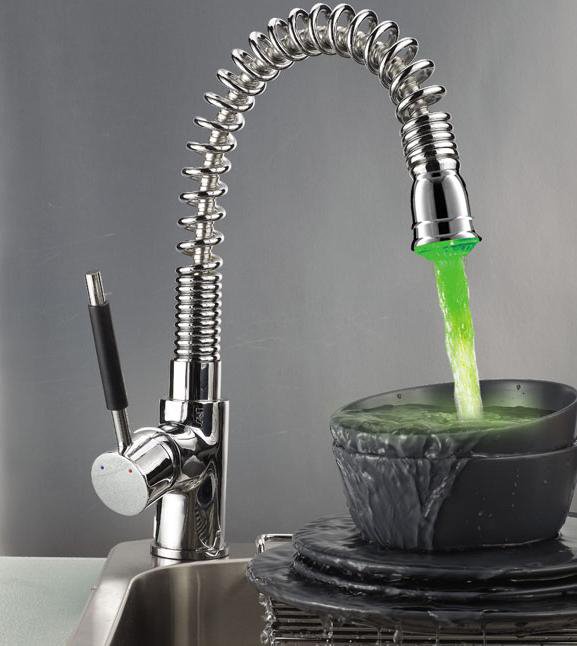

LED color can change the temperature of the water
0 to 30 degrees Celsius blue light-emitting diodes
Green LED 30 ~ 40 degrees Celsius
Red LED 41 ~ 50 degrees Celsius
50 ~ 100 degrees flashing red LED



 General Faucet Installation Instruction



Please kindly note that this is just a general instruction, each faucet you buy from us has installation instruction with details inside package.

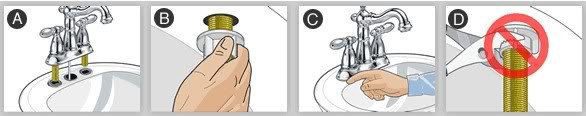

Step 1: Position the Faucet











B: From under the sink, thread the plastic mounting nuts onto the faucet shanks. Be sure the large side of each plastic mounting nut is up.

C: From the top of the sink, check the faucet and gasket position.

D: From under the sink tighten the mounting nuts, making certain not to over-tighten which could damage the nuts and make them difficult to remove in the future.

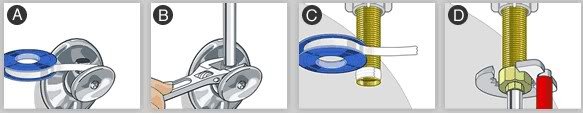

Step 2: Attach the Water Supply Tubes











B: Thread the water supply nut onto the shut-off valve. Tighten the nut with a wrench.

C: Wrap the threads on the faucet shank with Teflon tape, and then thread the water supply nut onto the faucet shank.

D: Tighten the nut with a wrench.

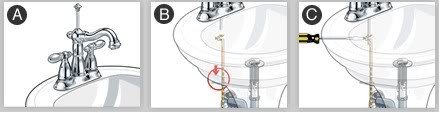

Step 3: Connect the Faucet Lift Rod











A-2: From under the sink, make sure the pivot-rod is in the down position. Insert the lift-rod into the lift-rod strap. Tighten the screw.

B-1: From the top of the sink, make sure the lift-rod opens and closes the drain plug as desired.

B-2: Make any needed adjustments by loosening the lift-rod strap screw and repositioning the lift-rod.

B-3: If you need to connect the lift-rod strap to the pivot rod, slide one end of the spring clip onto the pivot-rod.

B-4: Make sure that both the pivot -rod and the lift-rod are in the down position. Insert the pivot-rod in the closest hole in the lift-rod strap.

B-5: Slide the other end of the pivot-rod. Make sure the lift-rod opens and closes the drain plug as desired.

C-1: Make minor adjustments by loosening the lift-rod strap screw and repositioning the lift-rod.

C-2: Make major adjustments by removing the spring clip and moving the pivot-rod to a different hole in the lift-rod strap.

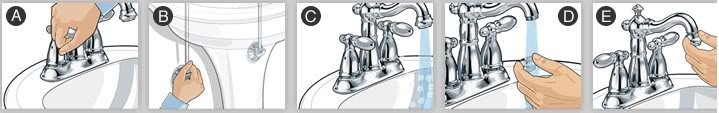

Step 4: Flush the Faucet











A-2: This debris can damage the sealing surfaces inside the faucet and cause leaks.

A-3: Remove aerator and black sealing gasket above it.

A-4: Before turning on the water supply, make sure the faucet handles are open (on position) in order to remove the debris without causing damage.

B: Open both water supply valves under the sink.

C-1: Allow the water to run for 15 seconds.

C-2: Close the faucet handles (turn off).

D: Make sure any debris is cleaned from the aerator screen.

E: Replace the aerator.



How to select faucet?

Suitable Style

The Faucet should match the characteristics of washbasin, sink and bathtub. For example, a single-hole faucet fit single-hole washbasin, and a center set faucet fit center set washbasin.

Proper Function

According to different purposes of the faucets, there are faucets for washbasin, bathtub, shower and sink. According to different functions of the faucets, there are hot/cold faucets, pressure-balanced faucets, thermostatic faucets and electrical sensor faucets.

Fine Finish

A well chrome-plated faucet looks dignified and with a little verdant color, when it looks pale, the plating density is not up to standard, when touched by hand or eye-observed, there must be no scratches, sand holes and oxidized spots. Our faucets have been proved to meet high requirement of United States and European chrome-plating standard.

Operation Inspection

Handles must be smooth and easy to operate for high-quality faucets. There shall be no sticking and tightness under the proper movement of the faucet handles. Each part must be tightly assembled.





A-1: Anytime you work on plumbing, filings, chips, and other debris can fall into the plumbing pipes.





A-1: From the top of the sink, insert the lift-rod into the faucet.





A: Wrap the threads of the water-supply valve with Teflon tape. Although most plumbers use only Teflon tape, some plumbing supply manufacturers also recommend using plumber’s putty.





A: Begin installing your faucet by placing the gasket and faucet in position on the sink.
