Dia.of inlet pipe

G(1/2) ″ DM15

Dia.of out let pipe

G(1/2)″DM15

Suitable water pressure

0.05Mpa-0.8Mpa

Best pressure

0.1-0.3Mpa

Power and voltage

DC.6V    AC.220V-50/60Hz

Power consumption in static

≤5uA 4AA alkaline batteries lasts 2 years based on 300 cycles a day

Power consumption

0.5mW(DC)     2W(AC)

Detection zone

Factory set 30cm(the data based on 30cm×30cm standard whiteboard,the inductive distance will be-adjusted by itself according to its environment)

Ambient temperature

0.1-45°C

Degree of protection by enclosure

lp56

Cartridge durage

No leakage after 250000times using

Corrosion tests

120hours

Life tests

3 years for  gurantee

Serive

OEM welcome

Features:     Stunning European design

1.High-quality H59/H65 solid brass casted body

2,sensor faucet corrosion test: NSS/AASS 24hours/48hours

3, Chrome Finish, Multi-layer finishing process; stunning looks (Available with chrome/brushed nickel/bronze/golden finish)

4, Quick and easy installation with included hot & cold water supply hoses and standard accessories

5,Mixer cold water and hot water

Includes:

• One Faucet in Polished Chrome

• Mounting Hardware

• Installation instruction in English

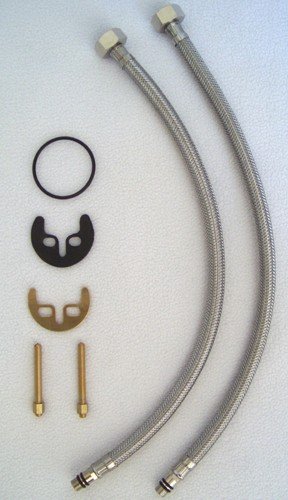

• Includes 35cm long, braided supply lines (standard 1/2” or 3/8" female compression fittings)

Warranty:

• All Our Faucets are offered with a 3-year limited warranty.....

Brass ceramic cartridge,500,000 times for both open and close.if you open and close 50 times one day,it can be used for more than 25 years.

Technical Information  Photos:

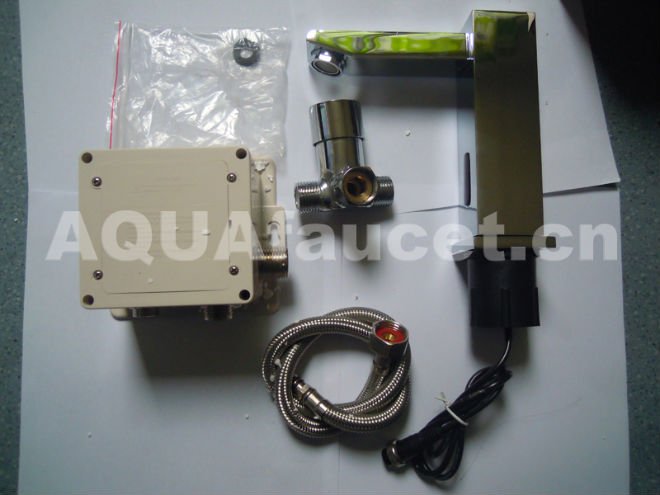

Parts

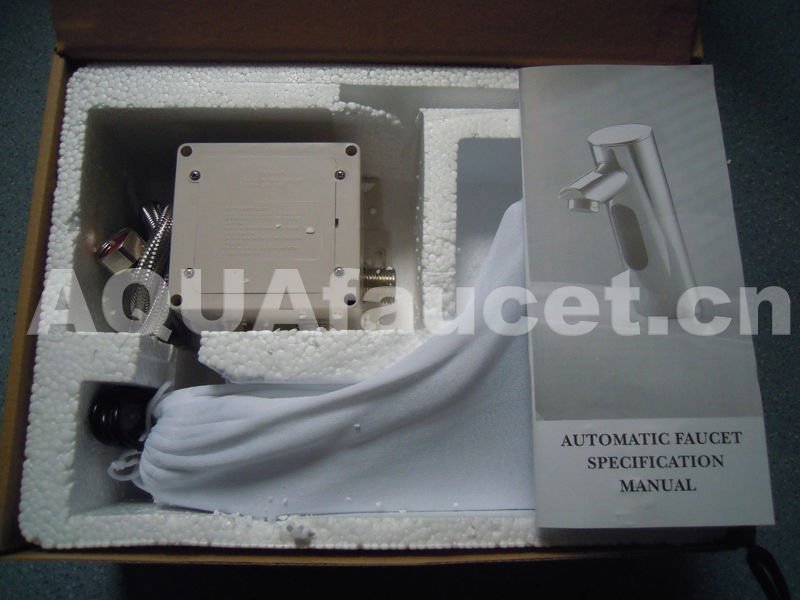

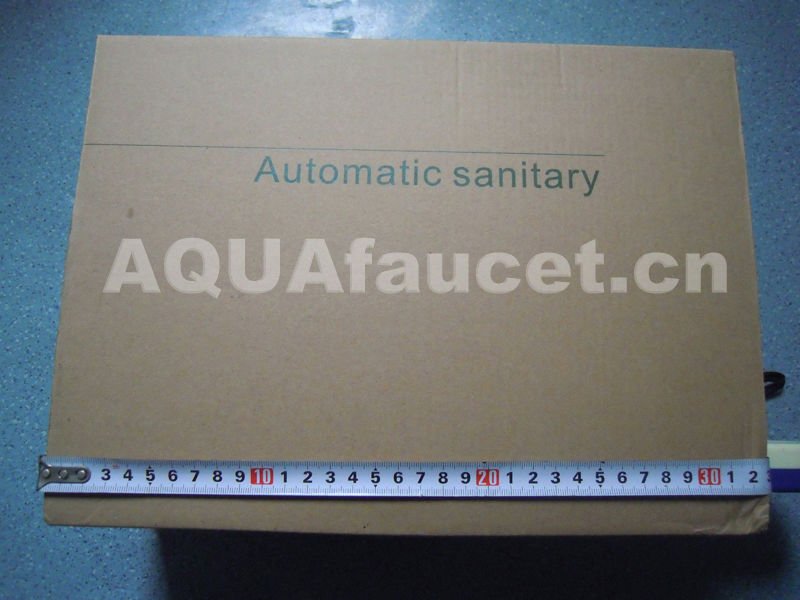

package

Package information of this basin mixer:

     inner package:foam box and kraft
    outer package:export standard carton
   the package can be designed by customer's requirement.
